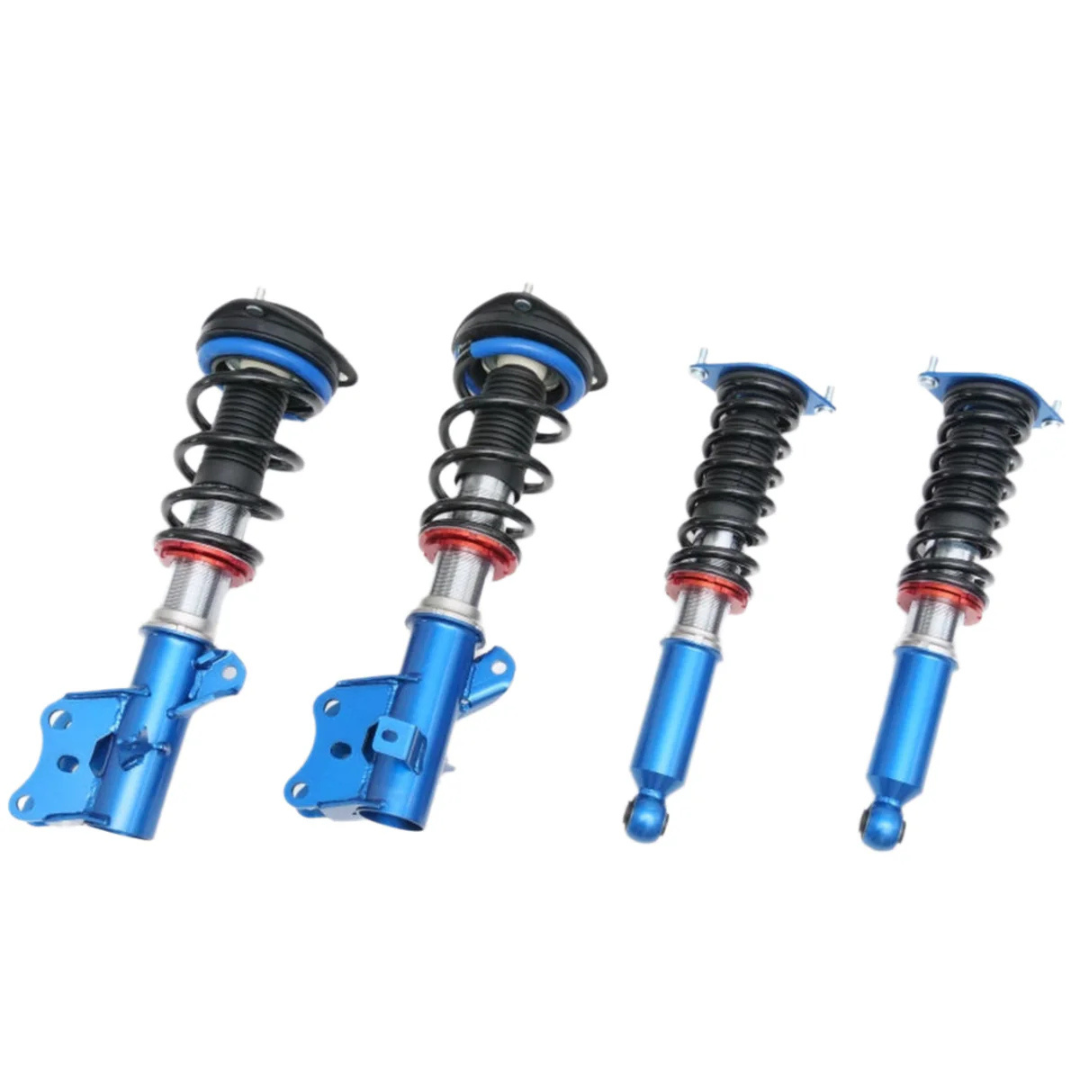

Cusco Street Zero-A Coilovers for 22+ WRX

Cusco Street Zero-A Coilovers for 22+ WRX

For models without Electronically Controlled Dampers.
If you are looking for the version with electronically controlled dampening, please refer here

Features

• Street Series high-end coilover model

• Full-length height adjustable design (full tap type)

• 40-stage damping adjustment (front & rear)

• Upper mounts included as standard equipment

• Dual-tube shock absorber design for improved ride comfort

• Manufactured in an ISO9001-certified facility

• ASEA standard certified product

Vehicle Height Adjustment

• Front: Full-length adjustable

• Rear: Full-length adjustable

Damping Force Adjustment

• Front: 40 levels

• Rear: 40 levels

Upper Mount

• Front: OEM rubber upper mount

• Rear: Reinforced rubber upper mount

Spring Rates

• Front: 6 kgf/mm

• Rear: 6 kgf/mm

Ride Height Specifications

Recommended Adjustment Range:

• Front: -25mm to -5mm

• Rear: -30mm to -5mm

Reference Ride Height:

• Front: -20mm

• Rear: -25mm

Maximum Adjustment Range:

• Front: -65mm to 0mm

• Rear: -40mm to 0mm
