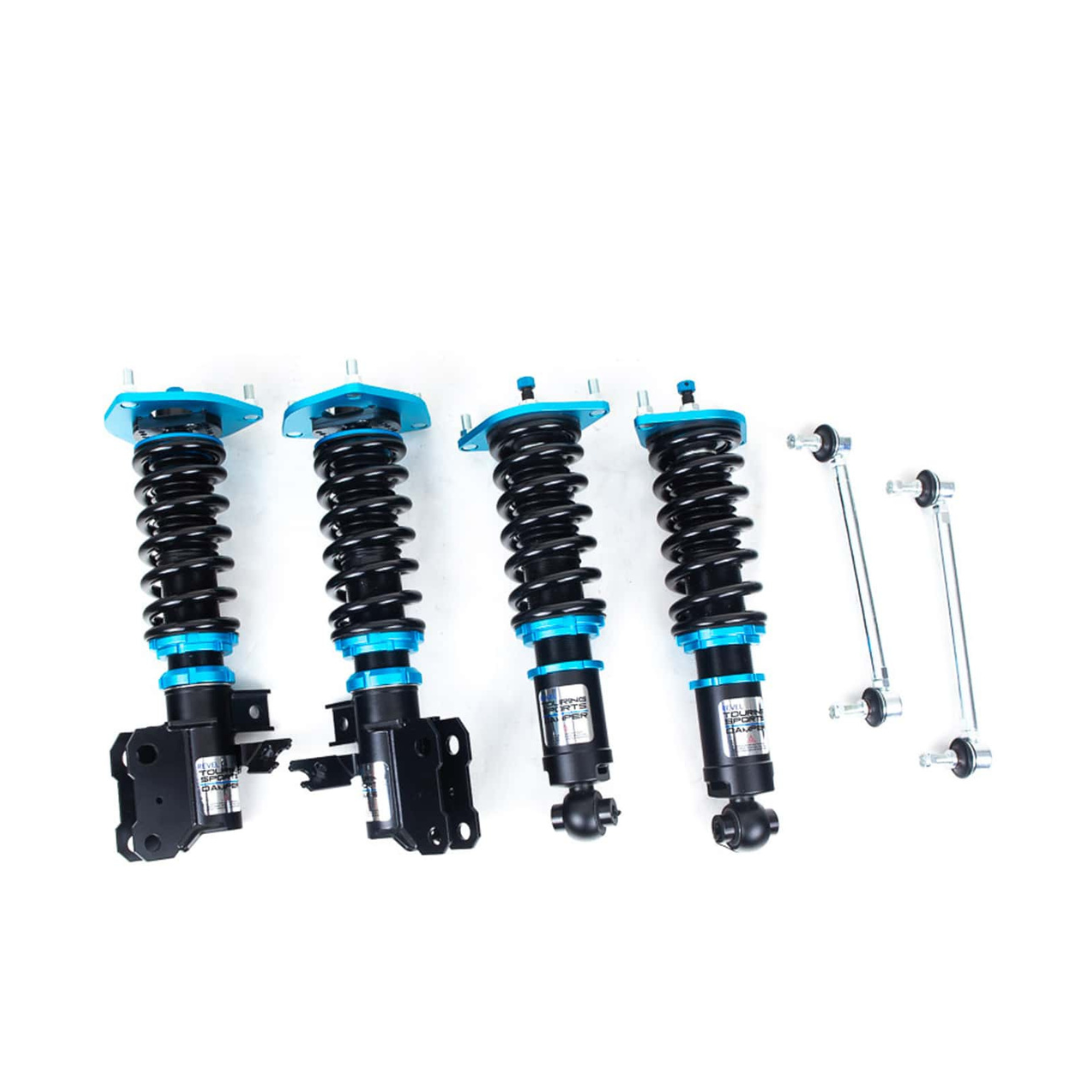

Revel Touring Sport Coilover kit for 2022-2026 WRX

Spring Rates

• Front: 10K (kg/mm)

• Rear: 10K (kg/mm)

Coilover Features

Everyday Performance

The 32-way adjustable Revel Touring Sports Damper is engineered to deliver exceptional ride comfort while allowing aggressive ride height adjustment. Carefully matched damping forces and spring rates provide smooth, controlled performance for both daily driving and spirited use.

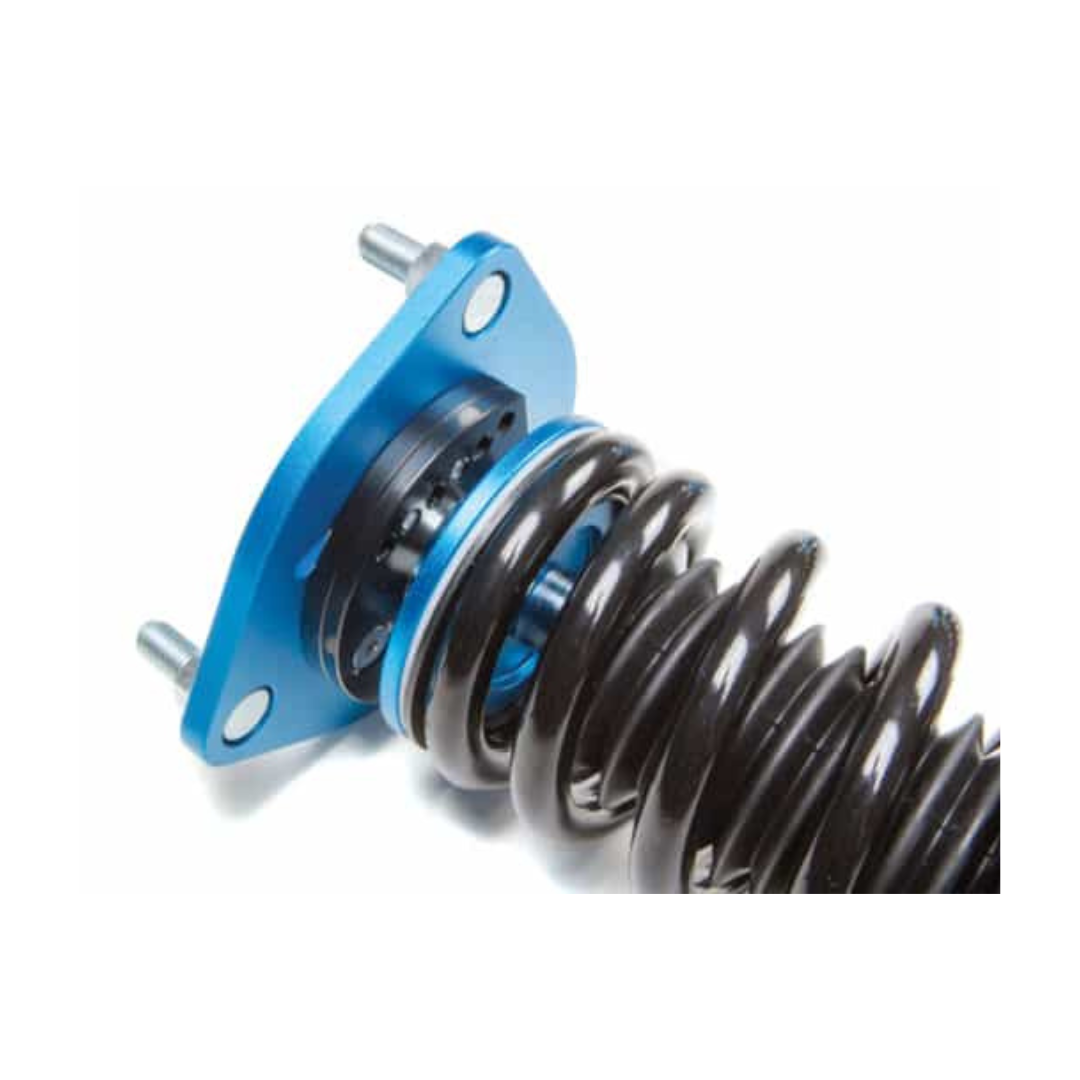

Pillowball Upper Mount

Pillowball upper mounts provide increased steering response and improved road feedback compared to OEM rubber mounts. A spherical bearing replaces the factory rubber bushing, and select applications include adjustable camber plates for enhanced alignment precision and tire traction.

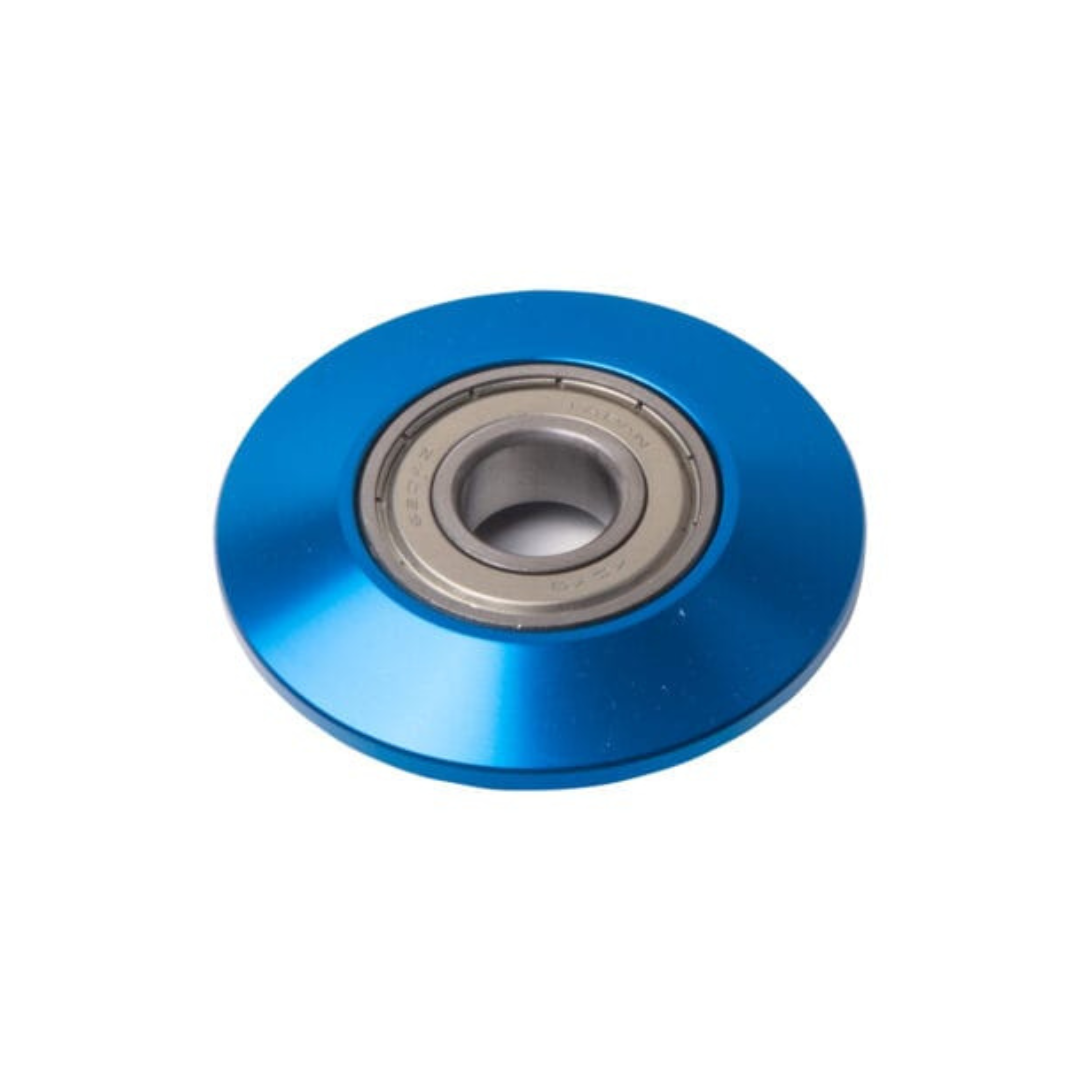

Radial Bearings

Included on kits utilizing MacPherson-type struts* to isolate spring movement from the coilover assembly. This design reduces noise commonly associated with aftermarket coilovers.
*Some applications excluded.

Coilover Covers

Every Revel Touring Sports Damper kit includes neoprene coilover covers for added protection against road debris and harsh weather conditions. These covers protect the springs, shock shafts, and seals, and feature a zipper design for easy installation without removing the coilover assembly.

Perfect Balance

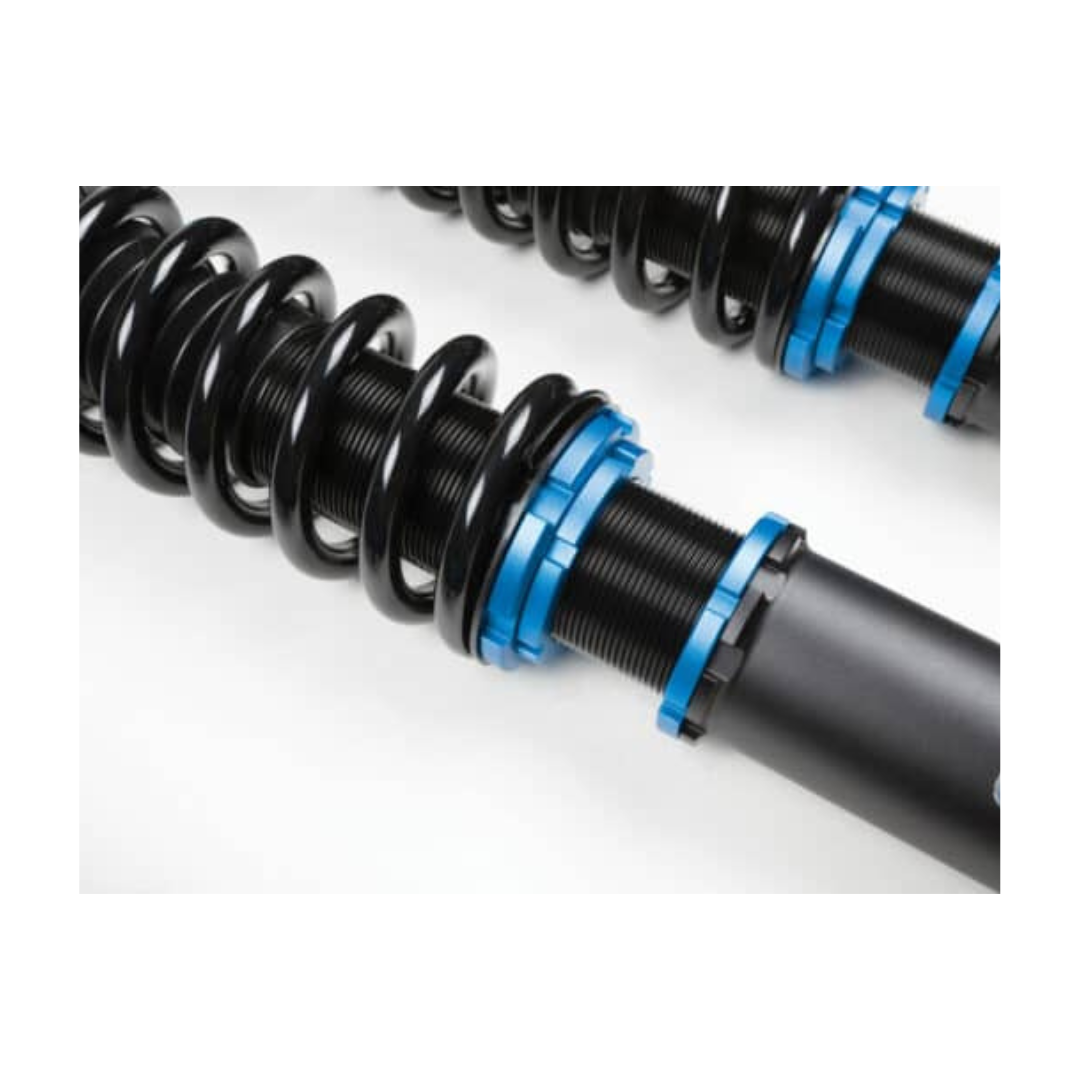

Spring rates are optimized to provide a comfortable yet sporty ride quality. The full-length threaded body with independent preload adjustment allows for maximum lowering without sacrificing suspension travel.

Monotube Damper Design

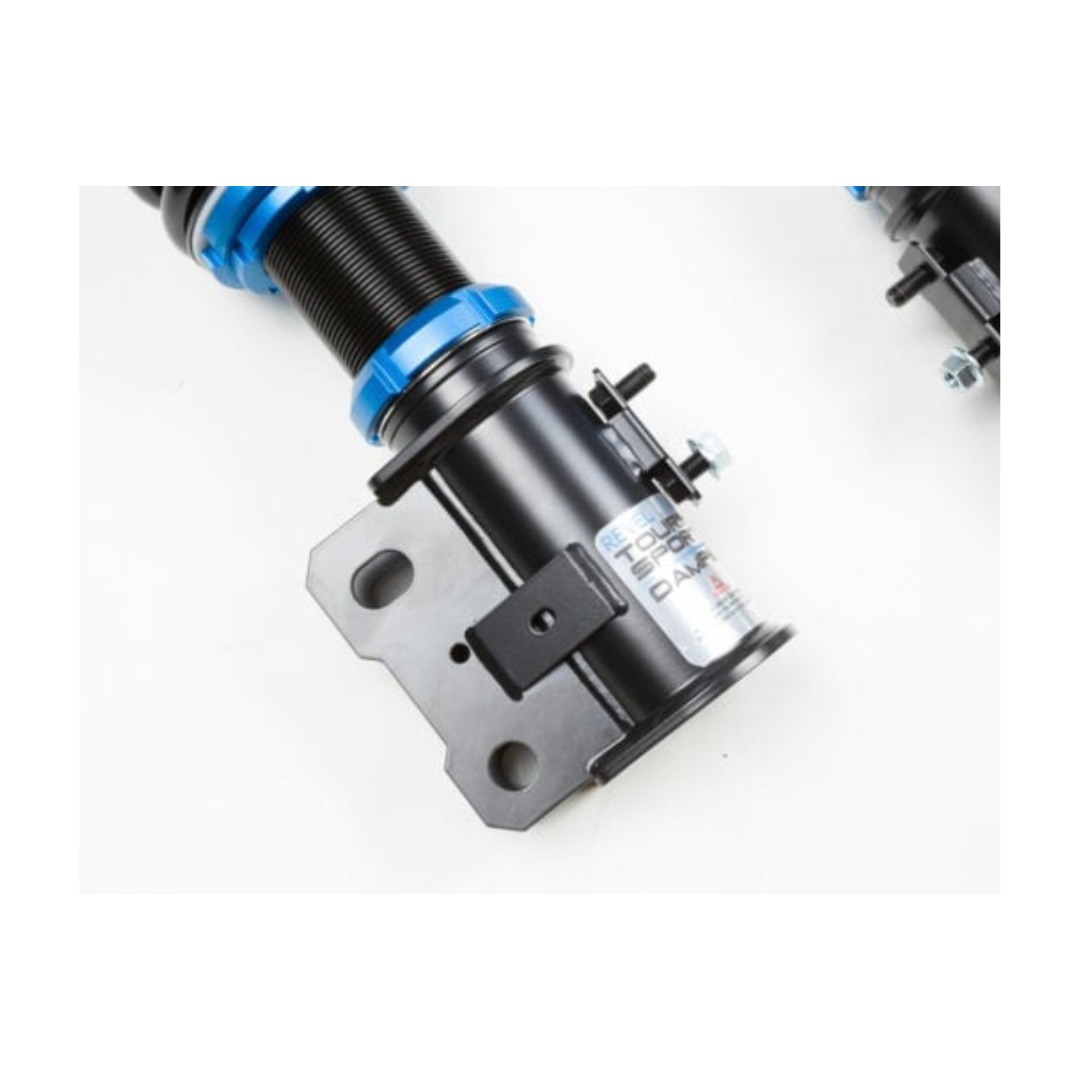

A monotube construction with larger piston valves and increased oil capacity delivers faster damping response and consistent performance across varying temperatures. High-strength mounting brackets enhance rigidity and driver confidence in all driving conditions.
