Race Technologies Brembo GTR BBK - Rear for 2022+ Subaru WRX

Race Technologies Brembo GT-R Rear Big Brake Kit (Type 3)

2022+ Subaru WRX (VB)

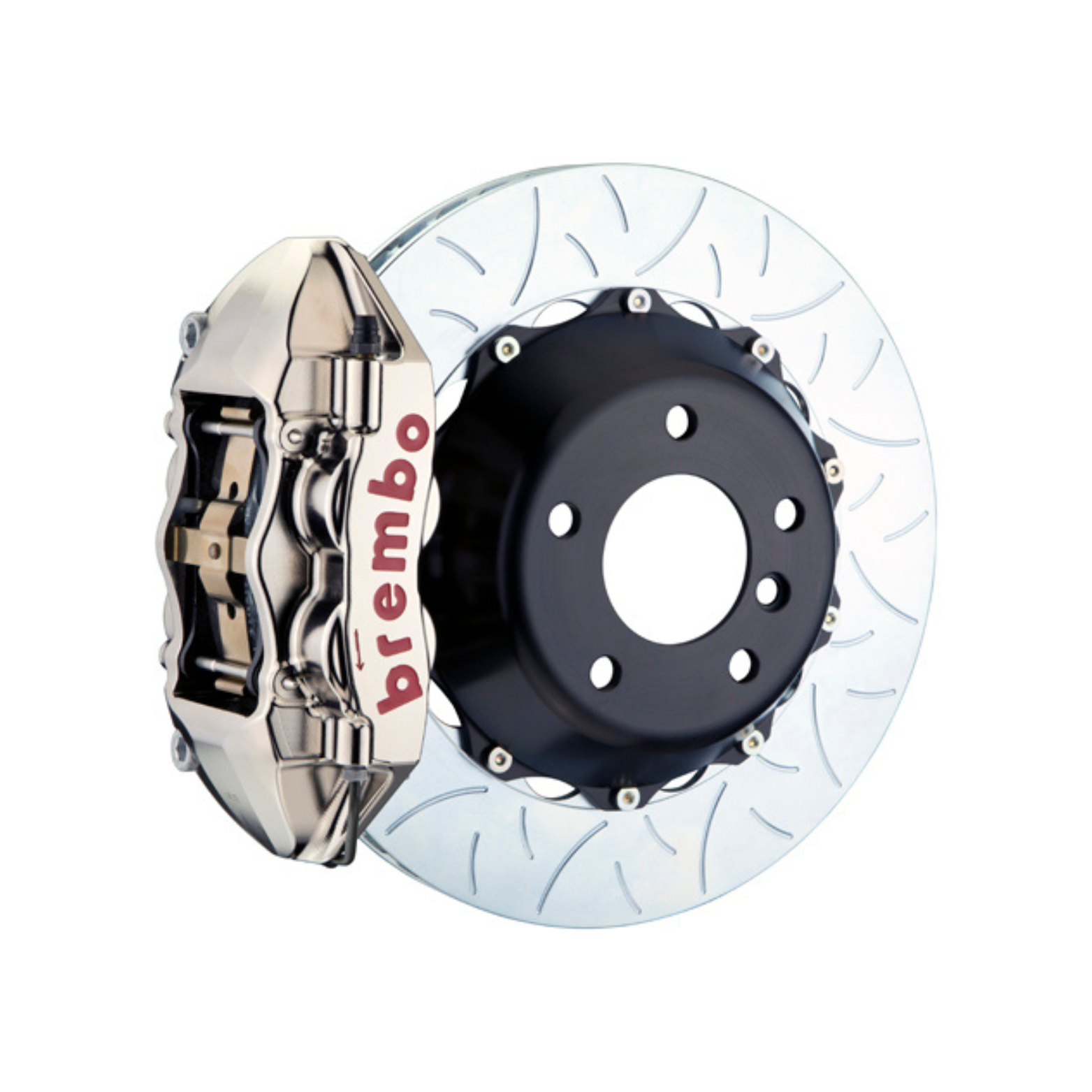

The Race Technologies Brembo GT-R Rear Big Brake Kit is the highest-tier rear braking system in Brembo’s GT-R lineup, engineered for drivers who want true motorsport-grade performance, maximum thermal capacity, and consistent braking under extreme conditions. Built around 4-piston billet aluminum monobloc calipers and large 345mm two-piece floating rotors, this system delivers sharp pedal response, improved stability under repeated hard braking, and balanced braking performance when paired with a front GT or GT-R kit.

Designed specifically for aggressive street use, canyon driving, autocross, and full track environments, the GT-R rear kit prioritizes stiffness, heat management, and reduced unsprung mass. The complete kit is pre-assembled and includes all mounting hardware, stainless steel brake lines, and high-performance pads for a direct bolt-on upgrade (vehicle compatibility dependent on parking brake configuration).

Features

• Brembo GT-R 4-piston billet aluminum monobloc rear calipers
• Motorsport-grade lightweight caliper construction for reduced unsprung weight
• Large 345x28mm two-piece floating rotors
• High-carbon alloy rotor material for superior heat resistance
• Type 3 (TY3) rotor design optimized for track cooling efficiency
• Advanced internal vane design for maximum heat dissipation
• Brembo FM1000 high-performance brake pads included
• Stainless steel braided brake lines (Goodridge-supplied)
• Floating D-bobbin rotor mounting system to manage thermal expansion
• CNC-machined billet mounting hardware included
• Pre-assembled kit for simplified installation
• Designed for street, canyon, and motorsport use

Specifications

• Vehicle Fitment: 2022+ Subaru WRX (VB chassis)

• Position: Rear axle
• Caliper Configuration: 4-piston billet monobloc
• Rotor Diameter: 345mm (13.6")
• Rotor Thickness: 28mm
• Rotor Construction: 2-piece floating
• Rotor Material: High-carbon alloy
• Rotor Type: Type 3 (TY3)
• Brake Pad Compound: Brembo FM1000 performance compound
• Brake Lines: Stainless steel braided

Why Choose the GT-R Rear Kit?

The GT-R rear system is designed to eliminate brake fade and inconsistency during sustained high-load braking. Compared to lower GT systems, it offers increased stiffness, better heat control, and a more direct pedal feel that stays consistent even after repeated hard stops. When paired with a GT-R front kit, it creates a fully balanced, motorsport-capable braking system for the VB WRX.

This is not just an upgrade for looks or light performance driving—it’s a serious braking system built for drivers who regularly push their cars hard.
